Common Truck Dimensions
Country
Company
Description

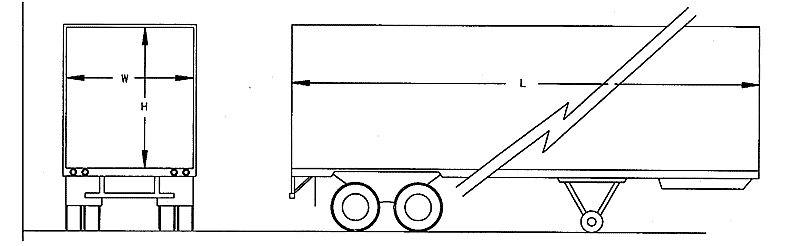

Inside Trailer Dimensions
L = Length
W = Width
H = Height
Cubic Space
Inches
mm
Inches
mm
Inches
mm
ft3
m3
USA
Most Common
28 ft Trailer
328
8331.2
99
2514.6
108
2743.2
2029.5
57.5
USA
Most Common
48 ft Trailer
568
14427.2
99
2514.6
110
2794
3579.6
101.4
USA
Most Common
53 ft Trailer
630
16002
99
2514.6
111
2819.4
4006.4
113.4
USA
Viking Freight Systems
78 Great Dane
317
8051.8
92.5
2349.5
107
2717.8
1815.7
51.4
USA
Viking Freight Systems
79 Great Dane
317
8051.8
92.5
2349.5
107
2717.8
1815.7
51.4
USA
Viking Freight Systems
84 Great Dane
317
8051.8
92.5
2349.5
107
2717.8
1815.7
51.4
USA
Viking Freight Systems
85 Utility
326
8280.4
92.5
2349.5
107
2717.8
1867.2
52.9
USA
Viking Freight Systems
86, 87, 88 Utility
326
8280.4
102.5
2603.5
108
2743.2
2088.4
59.1
USA
Viking Freight Systems
89 Alloy FRP
326
8280.4
102
2590.8
108.2
2748.28
2082.1
59.0
USA
Consolidated Freight
28 ft 15 Series
331
8407.4
99
2514.6
105
2667
1991.2
56.4
USA
Consolidated Freight
28 ft 17, 18, 19 Series
330.5
8394.7
99.3
2522.22
106.5
2705.1
2022.7
57.3
USA
Consolidated Freight
48 ft 79 Series
568
14427.2
99.3
2522.22
105.5
2679.7
3443.5
97.5
Euro
Most Common
6m Trailer
236
5994.4
96
2438.4
90
2286
1180.0
33.4
Euro
Most Common
8m Trailer
314
7975.6
96
2438.4
90
2286
1570.0
44.5
Euro
Most Common
12m Trailer
480
12192
96
2438.4
90
2286
2400.0
68.0
Euro
Most Common
14m Trailer
551
13995.4
96
2438.4
90
2286
2755.0
78.0
Euro
Most Common
16m Trailer
629
15976.6
96
2438.4
90
2286
3145.0
89.1
Japan
Most Common
Typical Softsided
370
9398
84
2133.6
96
2438.4
1726.7
48.9
Japan
Most Common
Extended Height Softsided
370
9398
96
2438.4
96
2438.4
1973.3
55.9
Singapore
Most Common
Small Softsided Trailer
120
3048
84
2133.6
86
2184.4
501.7
14.2
Singapore
Most Common
Large Softsided Trailer
240
6096
96
2438.4
86
2184.4
1146.7
32.5
